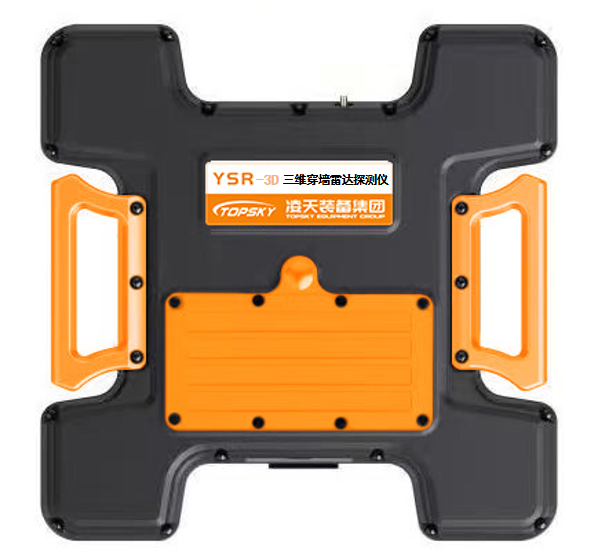

YSR-3D Three-dimensional radar life detector
|
1.Overview |
|
YSR-3D Three-dimensional radar life detector is composed of radar host (including battery), display control terminal, spare battery and charger.It is a portable and high performance wall-penetrating perspective system, which is used to obtain timely and accurate information of concealed personnel targets behind walls. The detector is unique in being able to provide a true three-dimensional image of the target behind the wall. This three-dimensional image is high resolution and high definition, making it possible to quickly locate concealed persons behind obstacles such as walls and track their movement patterns, thus distinguishing between hostages and terrorists. As a result, the ability to provide unparalleled situational awareness of the invisible environment behind the wall is ideal for intelligence, surveillance and reconnaissance missions. The display control terminal can receive and process radar information, display data to the tablet, simple operation, friendly interface, easy to use. |
|
2.Application |
| Fire rescueClosed house personnel probeEmergency rescue
Security check customs border detection |
|
3.Feature |
| 1.Strong penetration; Objects with low water content such as brick walls, precast panels, and concrete can penetrate 50cm brick-concrete walls, penetrate 2 30cm brick-concrete walls, and the detection distance of stationary organisms is ≥20m, and the detection distance of moving organisms is ≥30m2. Intelligent algorithm: Detect 5 targets at the same time, and intelligent prompt moving, stationary life, posture recognition3.Multi-working mode; Support 3D detection, 2D positioning, full area scanning, accurate scanning by file, track detection and other working modes
4. Long communication distance; The radar control panel can be operated wirelessly at a distance, and the communication transmission distance can reach 100m in open conditions 5.High precision; High positioning accuracy, high sensitivity |
|
4.Main specification |
| 4.1 YSR-3D Three-dimensional through wall radar:1. Penetration abilitya) Penetrating medium: cement, gypsum, red brick, concrete, reinforced concrete, adobe, stucco brick and other standard building materials, can be automatically set according to the actual environment to penetrate the medium, without manual adjustment
b)Detection distance: stationary life detection distance ≥20m, moving life detection distance ≥30m c)Continuous penetration: It can penetrate 50cm brick-concrete wall and penetrate 2 30cm brick-concrete walls 2. Multi-target detection and multi-range detection d) Number of detections: no less than 5 living entities, different targets are displayed in different colors, and different motion states are distinguished by different shapes e) Horizontal 120°, vertical 100° 3. High precision positioning, high sensitivity a) Distance resolution: ≤0.3m (no occlusion) b) Sensitivity control: high, medium and low sensitivity control c) Response speed: moving target is not more than 5 seconds, stationary target is not more than 10 seconds 4. Detection and scanning modes a) Detection mode: Display status: 2D positioning, 3D imaging, Target state: motion, stationary
