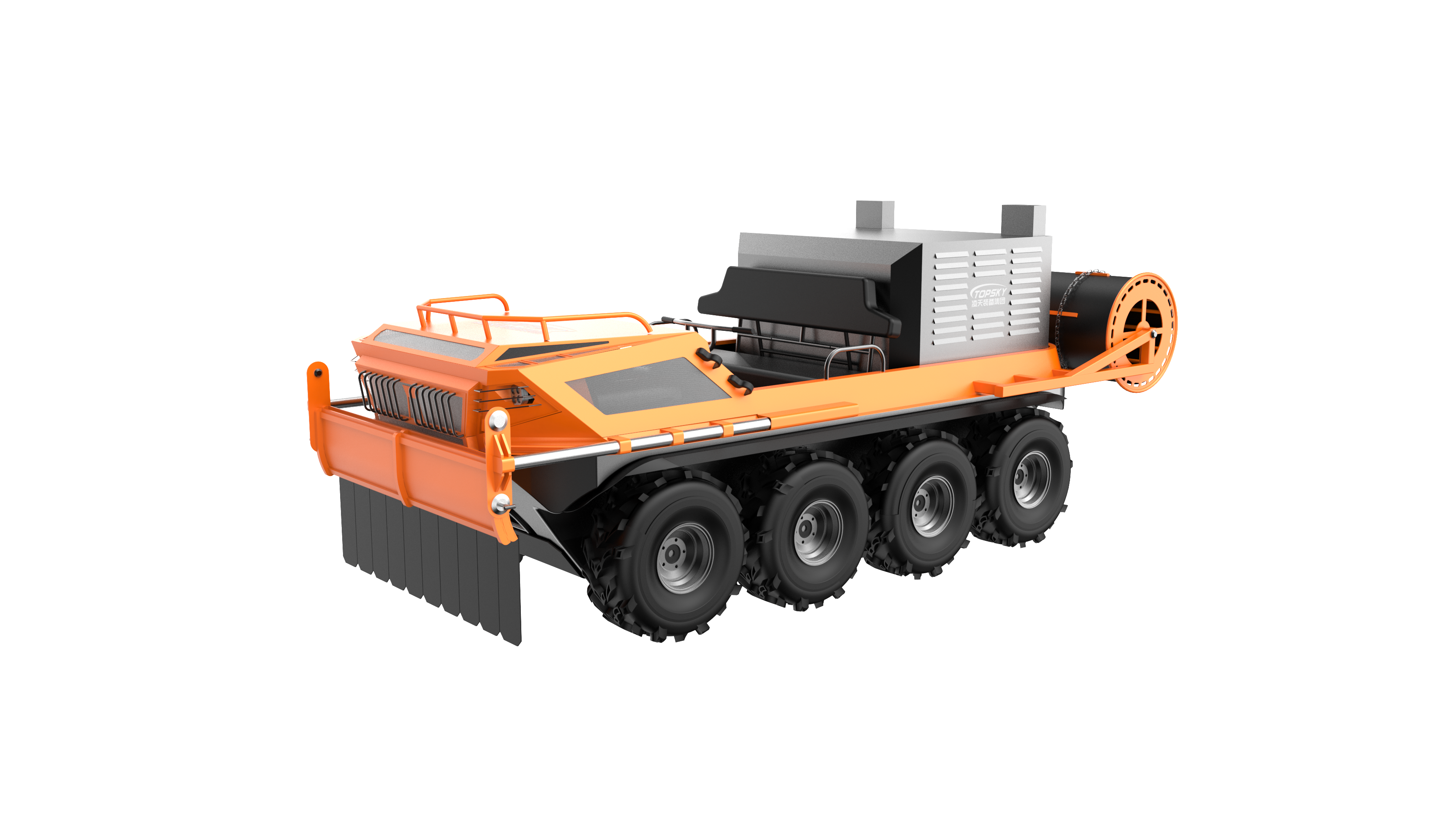

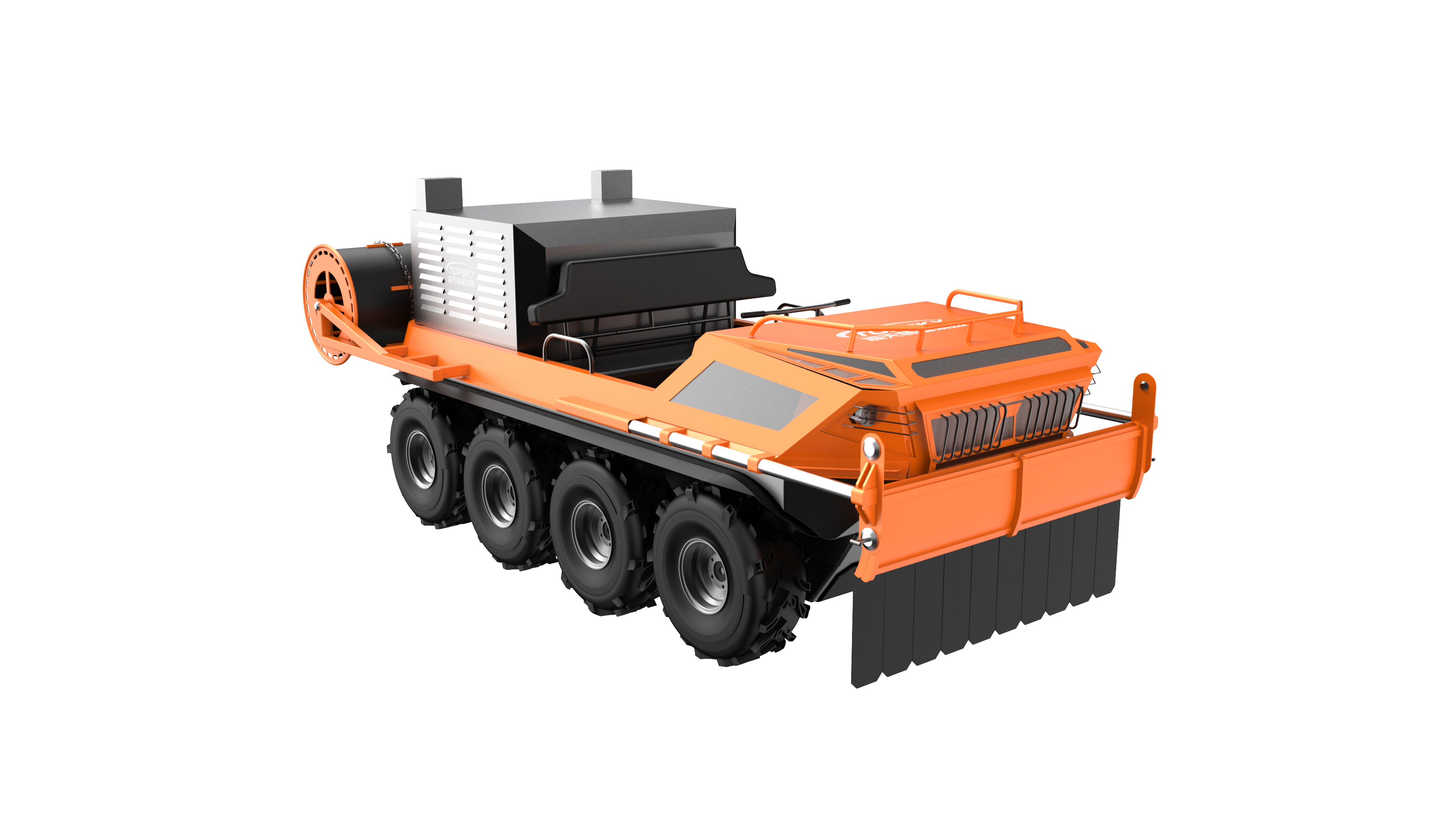

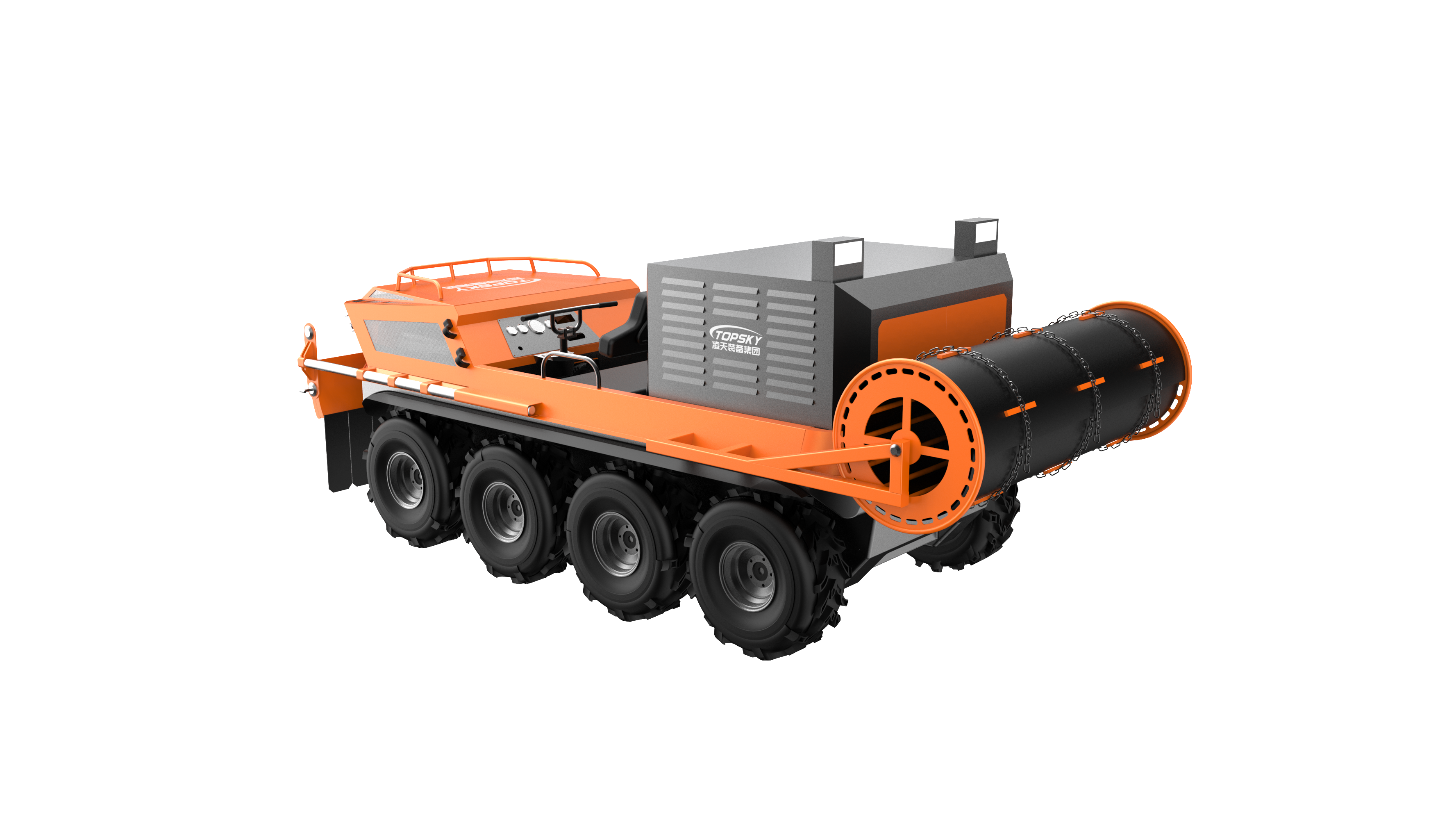

XTV-F8 Amphibious all-terrain prairie fire vehicle 8×8
XTV-F8 Amphibious all-terrain prairie fire vehicle 8×8
|
1.Overview |
| Amphibious all-terrain grassland fire extinguishing vehicle is a new type of multi-functional fire fighting vehicle developed to improve the efficiency of grassland fire extinguishing by integrating clearing, wind hydration and dragging and rolling, aiming at the constraints of insufficient troops in the fire field, large physical consumption of officers and soldiers, and slow pursuit of grassland fire. It realizes the transformation of fire extinguishing mode from manpower to mechanization.
In order to meet the needs of grassland fire fighting operations and for grassland fire fighting, it integrates a new multi-functional fire fighting vehicle that integrates fighting and cleaning, wind hydration and dragging and rolling, including fire baffle, rolling fire extinguishing board, towing fire extinguishing device, wind fire extinguisher and fire extinguishing shell box |
|
2.Application |
| Grassland fire fighting
Forest fire fighting Long distance transport
|
|
3.Feature |
| 1.Amphibious:
8×8 wheel chassis, amphibious, all-terrain driving. 2. High power: Engine horsepower ≥50kw, displacement ≥1000cc. 3.High mobility: All-terrain: uphill water, climbing hills, swamps, 8×8 low pressure tires suitable for all rescue scenarios, the maximum can take 6 people. 4.High speed: Speed: Land: ≥60km/h; Water: ≥5km/h Tire ≥15km/h(outboard engine). 5.High security: The body is covered with fire retardant material, and the vehicle has a closed design. 6.Easy to use: Hand-held design, does not require professional complex training can be on the road 7. Versatility: It is a new multi-functional fire fighting vehicle integrating cleaning, wind hydration and dragging and rolling, including fire baffle, rolling fire extinguishing board, dragging fire extinguishing device, wind fire extinguisher, fire bomb box, etc
|
|
4.Main specification |
| Main technical parameters:
1. Main technical parameters: 1.1 Car body parameters 1) The body is covered with fireproof materials, and the vehicle adopts a closed design 2)Vehicle weight: ≤1200kg 3)Rated load: land 600kg (or 7 people), water 300kg (or 4 people) 4)Body size: 3360×1610×1210mm 5)Minimum ground clearance: ≥220mm 6) Wheelbase: ≤720mm×3 7) Wheel base: ≤1350mm 1.2 Dynamic Parameters 1) Engine form: in-line four-cylinder, overhead double camshaft, four-stroke, 16 throttle 2) Displacement: 1083CC 3) Power: 50KW 4) Maximum torque (N.m) : 90 5) Transmission mode: CVT, belt drive 6) Transmission form: 2 forward gear, neutral gear, reverse gear 7) Fuel grade: 92# 8) Tank capacity: 40L 1) 1.3 Performance Parameters 2) 1) Starting mode: key switch electric starting 3) 2) Drive mode: Land: all-wheel drive; Water: All-wheel drive 4) 3) Integrated digital instrument panel: speedometer, tachometer, odometer, oil pressure display, handbrake cue light, lighting, etc 5) 4)Maximum speed: land: ≥60km/h; Water: ≥5km/h Tire ≥15km/h(outboard engine) 6) 5) Minimum turning radius: ≤0.71m 7) 6)Maximum climb: ≥40° 8) 7) Braking mode: clamp disc hydraulic brake 9) 8) Transmission: automatic transmission 10) 9) Steering mode: progressive sliding steering 11) 10) Traction capacity: ≥2000kg 12) 11) Tire specification: 25*12-9NHS 13) 12) Tire type: duck tire 14) 13)Approach Angle: ≥55°, departure Angle ≥75° 15) 14)Maximum inclination Angle: ≥35° 16) 15)Obstacle crossing: ≥300mm 17) 16)Across the trench: ≥500mm 18) 17) Running time: ≥10h 19) 18) Operation mode: handle type operation 20) 19) Throttle mode: right hand throttle 21) 20)Positioning function: Beidou positioning system installed in the car body 22) With remote intercom function and amplification function, call distance ≥3000 meters, amplification distance ≥500 meters
|
