Self-contained air breathing apparatus with full face mask
PPE Level Breathing Apparatus/CE certified
EN 136:1998 Respiratory protective devices. Full face masks. Requirements, testing, marking.
EN 137:2006 Respiratory protective devices. Self-contained open-circuit compressed air breathing apparatus with full face mask. Requirements, testing, marking.
Over view
Positive pressure air breathing apparatuses is a device for breathing and protection of human body by using compressed air as a gas source. It is mainly used in fire fighting, chemical, petroleum, metallurgy, shipbuilding, mining, laboratories, oil depots, warehouse and other departments for rescue and disaster relief. For the firefighters and emergency rescue personnel to carry out firefighting, rescue, disaster relief and rescue work safely and effectively in smoke, toxic gass, dust or oxygen-deficient environments.
Product Description
Supply Valve
Quck plug-in design, easy to use, quick air supply. 360 degree rolation;
Small size, light weight. and excellent under vision;
Breathe comfortable and easily, the maximum air supply can reach 450liters/minute;
Ensure positive pressure inside the mask, safer and more reliable;
The use of imported materials overall high temperature resistance, radiation resistance, impact resistance.
Reducer
Simple and reliable structure, pressure replenishment type, maintaining medium pressure circulation system;
The continuous flow rate is ≥450liters/minute;
Equipped with relief pressure valve, when the pressure in the middle pressure circuit is greater than 1.1MPa, it will automatically release pressure. Ensure user safety;
Equipped with hand-held handwheels for handling cylinders;
With his rescue interface, face mask hood can be used for breathing when rescuing the second party.
Electronic Alarmwhistle(Optional)
When the air pressure is(5-6)MPa, it can give a sound and light alarm;
The alarm sound exceeds 90 decibels, and the alarm frequency range is (2000-4000)Hz:
When the ambient temperature exceeds 60degrees Celsius, an alarm function can be issued;
With call for help alarm function;
Ultra-low energy design, battery standby time exceeds 1year;
The electroric alarm whistle has passed the inspection of the national explosion-proof inspection agency. Report number:CMExC16 4438.
Small Backrest
The back bracket is injection molded from enginnering plastics and has high strength adn impact resistance;
Not easy to damage, light weight and other advantages;
Increased the chest buckle and can adjust the length and it will not slip after fastening;
The straps and belts are made of non-slip, tear-resistant fabrics for extra comfor;
The fastener on the gas cylinder strap can double-fix the gas cylinder by snapping;
It is equipped with a lumbar support double layer device, which allows you to turn freely when performing lumbar activities.
Full Face Mask
Suitable for face shape, comfortable to wear;
Wide field of vision, higher security, double-layer design of the mask sealing edge; The full-face mask is CE certifed.
Has excellent flame retardant and rediation resistance;
Avoid toxic and harmful gases in the enviroment invading the mask;
Equipped with 5-point headband adjustment and quick release buckles for easy and reliable use;
With oropal mask to reduce the amount of CO2 exhaled in the mask;
The mask has been treated with anti-fog, the lens uses imported materials to achieve a transimittance of 92%;
It has six electronic functions such as amplicaiton, communication, lighting, respiratory performance monitoring, call for help, visual inspection of cylinder pressure, and so on;
Carbon Fiber Cylinders
Cylinder volume is 3L, 6.8L, 6.8*2, 9L optional;
Bottle body uses military-specific carbon fiber;
Material winding molding, safe and reliable, light weight
Mechanical Alarm Whistle
When air pressue is (5-6)MPa, continuous audible alarm can be issued;
Continuous sound alarm sound exceeds 90dB, the sound frequency range is (2000-4000)Hz:
From the start of the alarm until the cylinder pressure drops to 1MPa;
The average gas consumption of the alarm whistle is no more than 5L/Min.
Bottle Valve
The valv thread is international usedG5/8;
The bottle valve has been tested for 8,000times adn it is guaranteed for 10years;
The bottle valves have been approved by the General Administration of Quality Supervision, Inspection snd Quarantine, License number: TSF210066-2109.

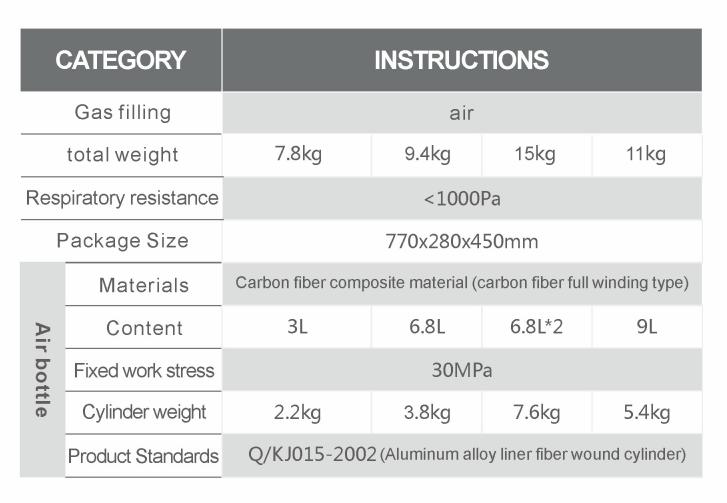

Technical Specification:
