Underwater Sonar Life Detector
Product description
The V8 underwater sonar detector is an equipment that uses a combination of sonar technology and underwater video to perform sound wave positioning and video confirmation of underwater target objects, and provide emergency rescue personnel with real-time underwater life information.
The instrument can display the sonar image and video image at the same time, and use the sonar probe to search underwater in real time. After the range is determined, the underwater video probe is used to identify and confirm the target, and cooperate to complete the search and recognition work, even under water It can also provide clear images when searching in dark or turbid waters.

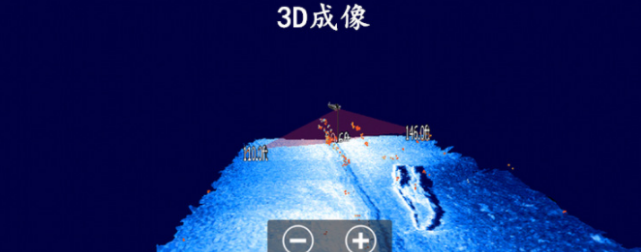

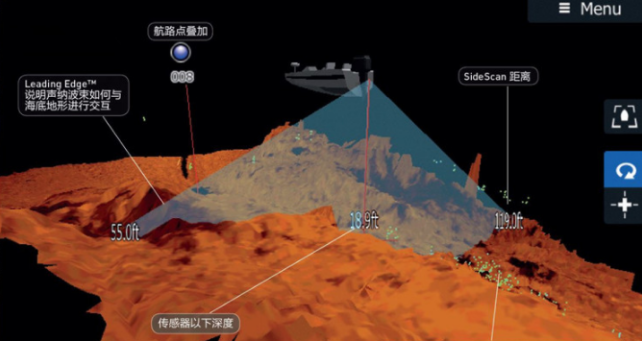

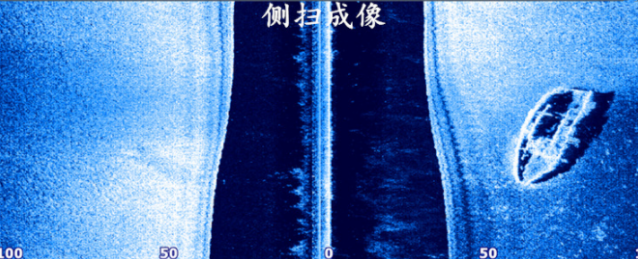

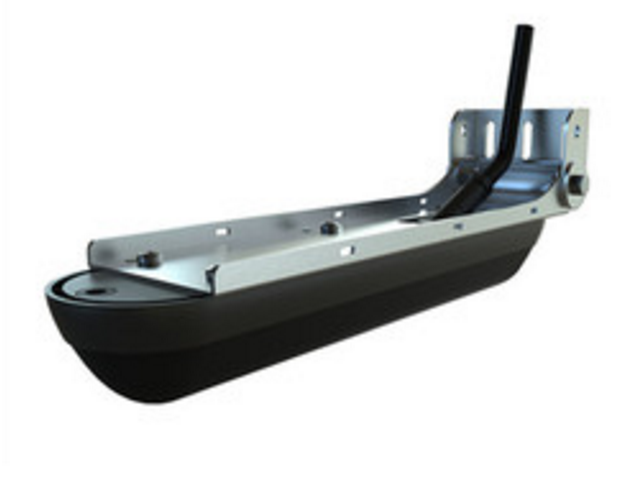

Sonar probe: Using the principle of acoustic reflection imaging to detect and locate underwater targets, real-time seamless scanning of underwater global domains can be achieved, real-time images drawn by underwater acoustic waves can be obtained, and the distance and position of the target point can be detected. The water temperature, water depth and GPS latitude and longitude information are displayed on the screen as images, which can quickly locate underwater targets, measure the basic size of underwater search objects, and display basic outlines.
Underwater video probe: It uses a high-definition camera, has a 360-degree automatic rotation function, and can adjust the rotation search speed, has deep waterproof and night vision functions, and can be placed 20 meters underwater for underwater video search.
Product parameter
Underwater camera:
1. Monitoring depth: 20m (optional 20m, 50m, 100m)
3. Resolution: 1920*1080
4. Light source: 20 white light lamps, 18 infrared lamps (manually turn on and off)
5. Control: autorotation, left turn, right turn (360°rotation)
6. Battery: 12V 4500MA
7. Battery life: 6-8 hours (real-time reminder of power)
8. Working temperature: -20-60℃
9. Storage temperature: -30-80℃
Sonar host:
1. Resolution: 1024*600
2. Interface: multi-touch screen + button type
3. Imaging depth: 91 meters
4. Depth of sounding: 300 meters
