Flow measuring drone LT-CL30

1.Overview

It is used for rapid detection of rainstorm flood flow speed, especially water flow speed of levee break. With the monitoring system of UAV water velocity and flow, the flow velocity environment measurement is ≥20m/s.

The UAV water flow meter integrates millimeter wave radar, which can carry out emergency water flow monitoring during flood season and heavy rain. Not affected by the monitoring environment, daily or emergency can be used anywhere. 4x optical zoom lens view the disaster area, live transmission back to the command center.

Adapted to DJI M300RTK/M350RTK, resistant to level 7 wind, can fly in moderate rain environment. Remote monitoring, avoid risk areas, ensure the safety of operators.

2.Application

Emergency fire fighting, flood fighting, etc

3.Feature



Radar current meter adopts the principle of Doppler effect to measure the surface velocity of flow body.

The operation is convenient, the UAV airborne radar flow measurement, the field only needs one staff to control the UAV and operate the APP flow measurement software to complete the flow measurement work.

The DJI Plilot mobile APP can be used directly to monitor water flow speed in real time.

Adapted to DJI M300RTK/M350RTK, resistant to level 7 wind, can fly in moderate rain environment.

Remote monitoring, avoid risk areas, ensure the safety of operators.

4x optical zoom lens view the disaster area, live transmission back to the command center.



4.Main Specification

Machine parameter

Current meter size: 200*175*155mm

Current meter weight: 570g

Current meter electrical interface: DJI SKYPORT adapter ring

Current meter power consumption: 5W

Video distance: 15km(displayed on remote control via drone link)

Data distance: unlimited distance (4G module sends data to browser), 15km (display in remote control via drone link)

Uav models: DJI M300RTK, M350RTK (optional)

Camera module parameters

Camera pixels: 3 million

Camera resolution: 1920*1080

Camera frame rate: 30fps

Camera focal length: 4mm, 6mm, 8mm, 12mm, 16mm optional

Parameter of flow measurement module

Sensor type: millimeter wave radar

Transmission frequency: 24GHz

Output power: 20dBm

Beam Angle: horizontal 6° Vertical 12°

Range: 0.1m/ S-20m /s

Accuracy: soil 0.01m/s

Resolution: 0.01m/s

Data frequency: 1Hz

Parameters of the water level measuring module

Sensor type: millimeter wave radar

Transmission frequency: 24GHz

Output power: 13dBm

Beam Angle: 8°

Range: 0.2m-40m

Accuracy: Soil 1cm

Resolution: 1mm

Data frequency: 1Hz

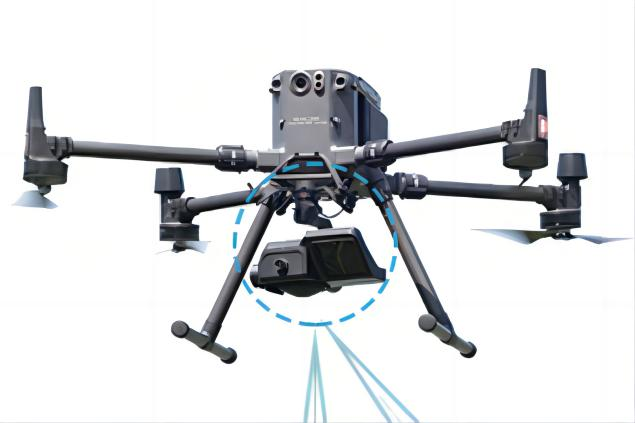

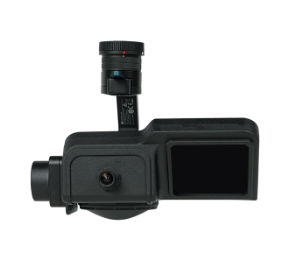

Pic1 Pic-2 Pic-3
