All -color night vision drone load (thermal imaging+zoom camera+laser ranging meter) S3 [Adaptation of DJI M300M350RTK]

Short Description:

1. Product overviewFull -color night visual drone S3 is equipped with extremely weak light full -color AI imaging engine “Knowing Shadow® AIISP”, which can achieve full color high -definition night vision that surpasses star light. The thermal imaging camera, the zoom camera ...


Product Detail

Product Tags

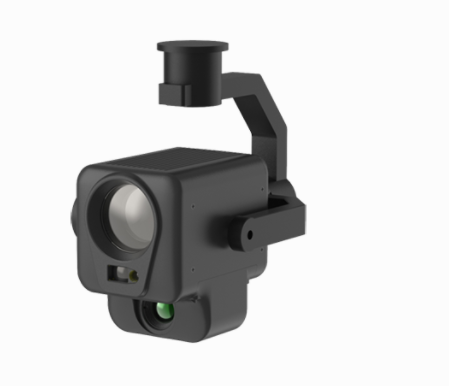

Pic1

1. Product overview

Full -color night visual drone S3 is equipped with extremely weak light full -color AI imaging engine "Knowing Shadow® AIISP", which can achieve full color high -definition night vision that surpasses star light. The thermal imaging camera, the zoom camera and the laser rangefinder are used, and the M300/M350RTK drone is used to realize the innovative application of a variety of drones night scenes and improve the efficiency and operation experience of night operations.

2. Scope of application

Applicated in the field of emergency rescue, drone reconnaissance

3.Product feature

Wastened day and night, you can make full color imaging under extremely low illuminationThere are no obvious drags in the sports objects in the night sceneAt night 2560*1440p ultra -clear picture quality

30 times optical zoom, 160 times comprehensive zoom

Laser ranging 1000m

640*512 dual light linkage thermal imaging zoom

Support ultra -remote target detection

Support dynamic strong light suppression

Support the fog function

Support 3D digital noise reduction

Support high -precision three -axis

4.main specification

Basic parameters:Image sensor: 1/1.8 "Super Star Light CMOSMinimum: Full Color: 0.005LUX

Maximum resolution: 4 million pixels, full color

Video frame rate: 5FPS ~ 30FPS real -time video

Video compression: H.264

White balance.: Automatic

Gain control: automatic

Remote upgrade function: support

Device log function: support

Wide dynamic: 120db

Signal ratio: greater than 52db

AL digital noise reduction: support

HDR: Support

Exposure mode: Automatic

Zoom lens:

Focus: F = 7.1-171mm, 30 times optical zoom, 160 times comprehensive zoom

Number of aperture: f/1.6 ~ 5.1

Farm angle: Level: 58.4 ° Wide; 2.1* Tele; Vertical: 34.19 Wide; 1.2 ° Tel E

Dialogue: 65.5* Wide; 2.4* Tele

Day and night mode: electric R-CUT infrared filter

Laser Ranging:

Distance: 5-1000M

Wave length: 905nm

Measurement accuracy: soil 1m

Infrared thermal imaging:

Sensor: Non -cooling oxidation (VOX)

Loster: DFOV: 45.76 ° focal length: 19mm aperture: f/1.0

Number change: 8 times

Video resolution: 640x512

Temperature measurement: -20'c-+150*C, 0 "C-+550 ° C



PTZ:

Angle shake volume:+0.008 °

Control rotation range: pitch: -110 " - +30*, partial flight: +320*

Interface: DGC2.0

Power: 13.6V/2A

interface:

SD card interface supports Microsd card storage (maximum 128G)

General parameters:

Power consumption: 8W

Protection level: IP55

Work temperature and humidity: -20*C-+60*C, humidity is less than 95% (no dew)

Size: L179mm*W126 5mm*H190mm

Weight: 1020g+5g
